Name: Front Suspension Struts And Springs(Changsu (China))((V)FROMEG000001)
Rating: 4.8 (1 reviews)

모두 보기

Front Suspension Struts And Springs(Changsu (China))((V)FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Suspension Struts And Springs(Changsu (China))((V)FROMEG000001)

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	LR008026	BOLT	$1.02	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR000055	NUT - HEX.	$2.33	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR024489	SPRING - SUSPENSION - FRONT	$128.31	주문하기
	LR024490	SPRING - SUSPENSION - FRONT	$79.22	주문하기
	LR024491	SPRING - SUSPENSION - FRONT	$79.22	주문하기

...and 1 more part variants. See table on right for more details.

사진	부품 번호	설명	가격 (개당)	재고
	LR121039	INSULATOR - SHOCK ABSORBER	$48.41	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR024477	MOUNTING - SHOCK ABSORBER	$68.94	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR009664	PAD - SUSPENSION SPRING	$5.02	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR028618	PAD - ANTI-SQUEAK	$10.68	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR033938	WIRING - MAGNETIC DAMPER	$38.05	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR056270	WIRING - MAGNETIC DAMPER	$65.40	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR045249	BOOT - SHOCK ABSORBER	$32.51	주문하기
	LR073344	BOOT - SHOCK ABSORBER	$32.24	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR024442	SHOCK ABSORBER - FRONT	$298.34	주문하기
	LR024435	MACPHERSON STRUT	$298.34	주문하기
	LR070934	MACPHERSON STRUT	$298.34	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR056268	MACPHERSON STRUT	$582.53	주문하기
	LR057931	MACPHERSON STRUT	$934.85	주문하기
	LR056266	MACPHERSON STRUT	$582.53	주문하기

...and 3 more part variants. See table on right for more details.

사진	부품 번호	설명	가격 (개당)	재고
	LR001144	BUMPER - SHOCK ABSORBER	$25.20	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	LR024476	BUMPER - SHOCK ABSORBER	$20.62	주문하기

다이어그램 탭하여 확대

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
HB1	LR008026	BOLT	LR008026 BOLT Bolt And Washer, M8 X 17MM / From: EG000001	$1.02	6	TO
HN1	LR000055	NUT - HEX.	LR000055 NUT - HEX. M12 x 1.25MM / From: EG000001	$2.33	2	TO
3C285A	LR024442	SHOCK ABSORBER - FRONT	LR024442 SHOCK ABSORBER - FRONT Less Adaptive Damping / RH, Less Magnetic Damping System / From: EG000001	$298.34	1	TO
3C285A	LR024435	MACPHERSON STRUT	LR024435 MACPHERSON STRUT Less Adaptive Damping / LH, Less Magnetic Damping System / From: EG000001 / To: GG134737	$298.34	1	TO
3C285A	LR070934	MACPHERSON STRUT	LR070934 MACPHERSON STRUT Less Adaptive Damping / LH, Less Magnetic Damping System / From: GG134738	$298.34	1	TO
3C285B	LR056268	MACPHERSON STRUT	LR056268 MACPHERSON STRUT Magnetic Damping System / RH / From: EG000001 / To: EG100003	$582.53	1	TO
3C285B	LR057931	MACPHERSON STRUT	LR057931 MACPHERSON STRUT Magnetic Damping System / RH / From: EG100004 / To: HG162196	$934.85	1	TO
3C285B	LR056266	MACPHERSON STRUT	LR056266 MACPHERSON STRUT Magnetic Damping System / LH / From: EG000001 / To: EG100003	$582.53	1	TO
3C285B	LR057930	MACPHERSON STRUT	LR057930 MACPHERSON STRUT Magnetic Damping System / LH / From: EG100004 / To: GG134737	$582.53	1	TO

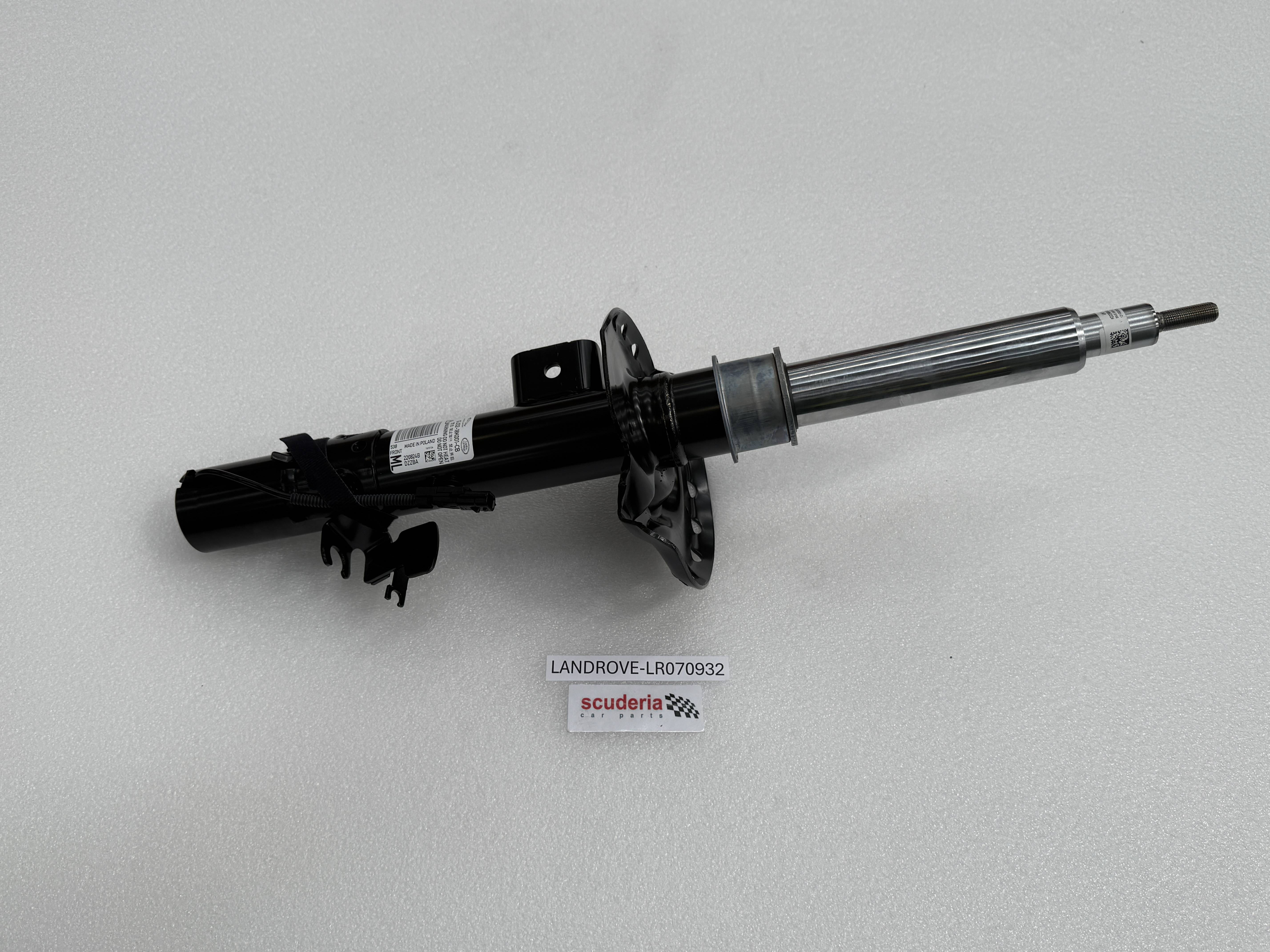

3C285B	LR070932	MACPHERSON STRUT	LR070932 MACPHERSON STRUT Magnetic Damping System / LH / From: GG134738	$763.20	1	TO
3C285B	LR079422	MACPHERSON STRUT	LR079422 MACPHERSON STRUT Magnetic Damping System, With Standard Suspension / RH / From: HG162196	$782.28	1	TO
3K155	LR024477	MOUNTING - SHOCK ABSORBER	LR024477 MOUNTING - SHOCK ABSORBER From: EG000001	$68.94	2	TO
14A411	LR033938	WIRING - MAGNETIC DAMPER	LR033938 WIRING - MAGNETIC DAMPER Magnetic Damping System / RH/LH / From: EG000001	$38.05	2	TO
14N424	LR056270	WIRING - MAGNETIC DAMPER	LR056270 WIRING - MAGNETIC DAMPER Magnetic Damping System / Service Repair Links / From: EG000001	$65.40	1	TO
18A047	LR045249	BOOT - SHOCK ABSORBER	LR045249 BOOT - SHOCK ABSORBER From: EG000001 / To: FG117703	$32.51	2	TO
18A047	LR073344	BOOT - SHOCK ABSORBER	LR073344 BOOT - SHOCK ABSORBER From: FG117704	$32.24	2	TO
18A085A	LR001144	BUMPER - SHOCK ABSORBER	LR001144 BUMPER - SHOCK ABSORBER Efficient Driveline, Less Adaptive Damping / From: EG000001	$25.20	2	TO
18A085B	LR024476	BUMPER - SHOCK ABSORBER	LR024476 BUMPER - SHOCK ABSORBER Magnetic Damping System / From: EG000001	$20.62	2	TO
5310	LR024489	SPRING - SUSPENSION - FRONT	LR024489 SPRING - SUSPENSION - FRONT Red / Brown / From: EG000001	$128.31	2	TO
5310	LR024490	SPRING - SUSPENSION - FRONT	LR024490 SPRING - SUSPENSION - FRONT Yellow / Brown / From: EG000001	$79.22	2	TO
5310	LR024491	SPRING - SUSPENSION - FRONT	LR024491 SPRING - SUSPENSION - FRONT Blue / Brown / From: EG000001	$79.22	2	TO
5310	LR024492	SPRING - SUSPENSION - FRONT	LR024492 SPRING - SUSPENSION - FRONT Green / Brown / From: EG000001	$85.51	2	TO
5349A	LR009664	PAD - SUSPENSION SPRING	LR009664 PAD - SUSPENSION SPRING Upper / From: EG000001	$5.02	2	TO
5349B	LR028618	PAD - ANTI-SQUEAK	LR028618 PAD - ANTI-SQUEAK Lower / From: EG000001	$10.68	2	TO
18198	LR121039	INSULATOR - SHOCK ABSORBER	LR121039 INSULATOR - SHOCK ABSORBER From: EG000001	$48.41	2	TO

Front Suspension Struts And Springs(Changsu (China))((V)Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Suspension Struts And Springs(Changsu (China))((V)FROMEG000001)
